org.jcurl.math
Class CSplineInterpolator

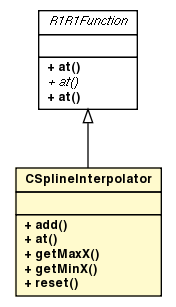

java.lang.Object
  org.jcurl.math.R1RNFunctionImpl
      org.jcurl.math.R1R1Function
          org.jcurl.math.CSplineInterpolator

All Implemented Interfaces:

Serializable, R1RNFunction

public class CSplineInterpolator
extends R1R1Function

The numerical algorithms are adapted from "Meyberg/Vachenauer": Hoehere Mathematik I, second edition. Could this be based on CurveCombinedwith 3-dimensional polynomes?

Version:

$Id: CSplineInterpolator.java 1031 2009-07-23 15:06:05Z mro $

Author:

M. Rohrmoser

See Also:

Serialized Form

Constructor Summary

CSplineInterpolator()
Create a new spline interpolator with an initial capacity of 100 points.

CSplineInterpolator(int capacity)
Create a new spline interpolator with the given initial capacity.

Method Summary

void	add(double x, double y) Add a point and discard the splines.
double	at(double x, int C) Convenience wrapper.
double	getMaxX()
double	getMinX()
void	reset() Discard the buffered points and splines.

Methods inherited from class org.jcurl.math.R1R1Function

at, at

Methods inherited from class org.jcurl.math.R1RNFunctionImpl

at, at, dim

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

CSplineInterpolator

public CSplineInterpolator()

Create a new spline interpolator with an initial capacity of 100 points.

See Also:

CSplineInterpolator(int)

CSplineInterpolator

public CSplineInterpolator(int capacity)

Create a new spline interpolator with the given initial capacity.

Parameters:

capacity -

Method Detail

add

public void add(double x,
                double y)

Add a point and discard the splines. The x-values must be strictly monotonous ascending - which is not checked for the moment. Reallocates the point buffer if necessary.

Parameters:

x -

y -

at

public double at(double x,
                 int C)

Convenience wrapper.

Specified by:

at in class R1R1Function

Parameters:

x - location

C - n'th derivative (0=value,1=incline,2=acceleration)

Returns:

value ot the n'th derivative

See Also:

R1R1Function.at(double, int, int)

getMaxX

public double getMaxX()

getMinX

public double getMinX()

reset

public void reset()

Discard the buffered points and splines.
